October 26, 2009 - The book is done, so it's time to tear back into the MG.

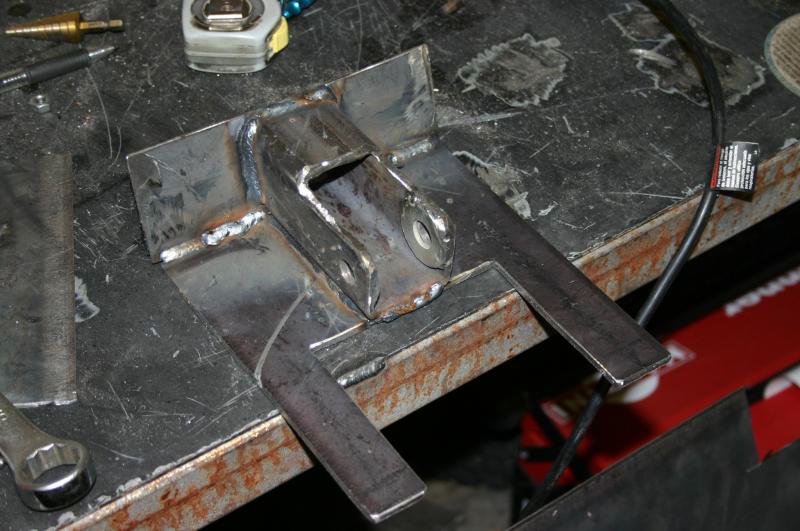

Janel's been asking when I'd start working on her car again, and with a day off the answer was "today"! This is the new mounting point for the upper suspension link. I've been basing my design on the Fast Cars three-link used in the well-documented build of Dan Masters' Ford-powered car. I'm not as pretty a fabricator as those guys are, and I was definitely cursing my lack of a bead-blasted and pristine shell today as I cut brackets off around the battery boxes. Yuk.
From what I can figure, this thing will mostly see tension as the diff tries to rotate upwards. The Fast Cars solution includes a reinforcing brace along the top of the transmission tunnel which seems like a pretty good idea. The only downside is that it would require custom carpet, and I'd much rather deal in metal. I'll probably put something similar in and solve that problem later.
tags: suspension |
