February 16, 2010 - With the harness simplified, I laid it out over the engine.
Next I had to find a place to stash the enormous ECU. It's huge! Newer ones are smaller - but I don't have a newer one. With the removal of the AC system inside the car, there's some room above the passenger's feet. It would be hard to disguise the big modern heatsinked box though.

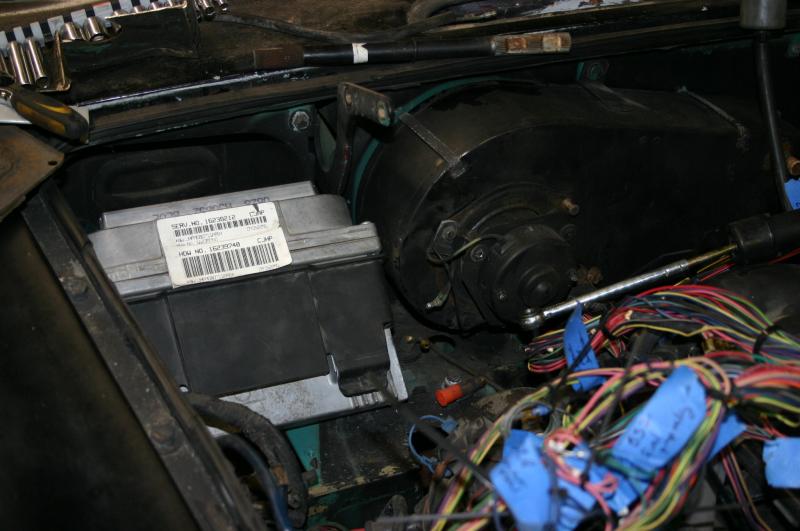

The MGB, like many other Little British Cars, is ambidextrous and uses the same chassis for RHD and LHD applications. There are even plates covering over the holes where the pedals would pass through the firewall. This leaves a fairly large space where the RHD pedals aren't, and it's the perfect size for the ECU. As a bonus, the Camaro keeps its ECU in almost exactly the same place so the wiring lengths are almost perfect. I can even reuse the Camaro bracket.
It seems I get lucky with packaging once in a while on this project.
