June 16, 2010 - Wiring time!

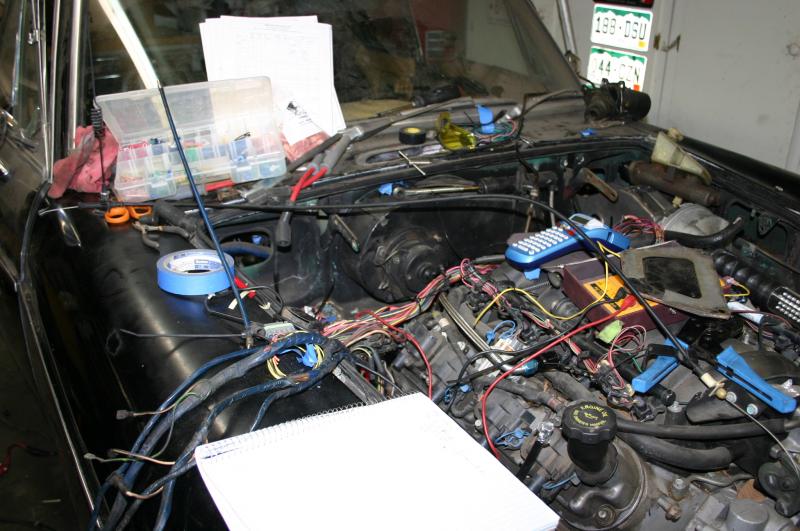

This means I'm referencing a handy four-page schematic of the Camaro wiring, the one-page diagram for the MG and referring to the big 100-page book of Miata wiring once in a while. The Camaro wiring is actually going pretty well. The biggest problem is hunting down and fixing a couple of connectors that were damaged either when I pulled the engine or beforehand.
Integrating it into the MG wiring is a bit more challenging, although it did help when I figured out I was trying to reinstall the MG harness the wrong way in the car! I think I need to make a photocopy of the MG diagram and start identifying which sections to keep and which ones will be deleted.
Sharp eyes (and real obsessives) might notice that I've flipped the fuel rail over on the engine. This puts my fuel feed on the passenger's side instead of the driver's. It's just a bit easier to run it that way. Let's hear it for symmetrical intake manifolds!
tags: wiring, fuel |
