August 29, 2010 - Of course there was a problem.

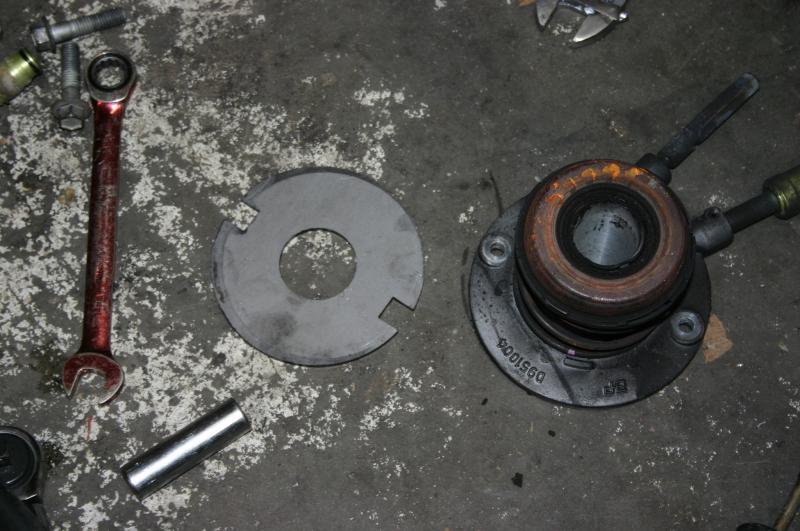

After I had the transmission all tightened down, I picked up the old slave cylinder and turned it over - and discovered this spacer hiding underneath. It's laser-cut steel, definitely not stock. It was probably installed with the clutch. Since the Camaro worked, it's also probably required as the old and new slaves are the same part number. So I had to pull the transmission out again. At least I was just working with an engine sitting on the floor!
Naturally, I ran into other problems. I pulled the slave off, installed the spacer and went to bolt it up again. And stripped out a thread on the aluminum transmission casing. With the spacer in place, there was less thread engagement. I ran a tap down the hole and dug through my collection of fasteners until I found a bolt that was long enough to make up the difference of the spacer. That worked fine, so then it was just a matter of reassembly. Sheesh.
Let's hope this all works!
tags: transmission, hydraulics, clutch |
